Intruder Alarms

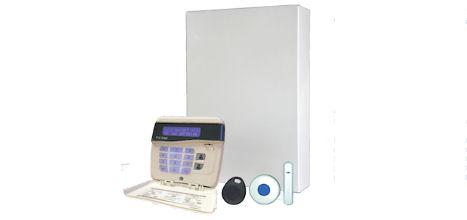

The Control Panel hosts extensive features and is the ideal choice for residential or commercial installations up to 136 zones.  Hybrid wireless 868 MHz capabilities allow additional flexibility with a complete range of wireless accessories.  The GT601 is G-Tag compliant providing a unique solution for meeting DD243 requirements.
EN Grade 3, Grade 2 or BS settings selectable upon power up.

General Information

  • Up to 136 zones, 7 areas, 99 users and 752 event log
  • Up to 60 ID zones with two ID+ expanders
  • Metal casing
  • Unique DD243 solution with G-Tag
  • Complete remote diagnostics via GT remote software
  • Hybrid wireless up to 16 wireless zones
  • Up to 7 LCD keypads – 32 characters for simple operation and descriptions
  • Plug-on STU board
  • Code grouping enables several control areas
  • Resettable fuses and improved monitoring for higher reliability

Technical Specifications

  • Security Grade EN Grade 3 or Grade 2 or BS
  • End Station housing Metal
  • Programmable Zones 136
  • Zone type options 14
  • Onboard zones 8
  • Wired zone expanders 16 x 8 zones
  • Wireless zone expanders 2 X 8 zones (up to 16 zones)
  • ID expansion 2 X ID cards = 60 ID zones
  • Areas 7
  • Part sets 2 on all areas
  • Number of keypads 7
  • Keypad Type LCD
  • Prox compatible Yes
  • Keypad zones 2 per keypad
  • PA separate on keypad Yes
  • Alert keys on keypad 1&3 7&9
  • Speaker output Yes
  • Programmable bell ring Yes
  • Digi compatible Built-in
  • Digi formats FF/SIA/Contact ID
  • Vocom Built-in
  • Resettable fuses Aux/Bell/Keypad/Comms/Battery
  • Keyswitch option Via Zone
  • PSU 2 Amp
  • Strobe confirmation Yes
  • Upload download Yes
  • Wiring formats 2 Wire/4 Wire/EOL
  • Onboard Outputs 2
  • Additional output cards 4 cards x 4 outputs each
  • STU compatible Via STU adaptor
  • User codes 99
  • Event Log 752
  • Modem Log 128
  • Max Loop Resistance 2K (without EOL)
  • Battery Sizes 1.2Ah/2.0Ah/3.0Ah/7.0Ah/17.0Ah
  • Quiescent current 150mA @ 12v dc
  • Dimensions H420 x W380 x D96mm
